The digital electronic checking fixture is a next-generation inspection fixture system specially designed for the precise quality inspection of aluminum high pressure cast components, both before and after machining processes. Compared with traditional manual checking fixtures, this advanced inspection gauge system significantly improves efficiency, reduces inspection time, and enhances measurement consistency in modern manufacturing environments.

Advanced Digital Inspection Fixture for High-Precision Measurement

This electronic checking fixture is equipped with a high-precision detection probe, and an optional vision measurement system can also be integrated depending on application requirements. The system achieves a measurement accuracy of up to 0.01mm, making it a highly reliable metrology inspection fixture for tight-tolerance aluminum casting parts.

With a repeat measurement GR&R of ≤10%, the system ensures stable and consistent measurement results, which is critical for automotive, aerospace, and precision machining industries where quality control is essential.

High Efficiency Aluminum Casting Inspection Fixture

As a modern aluminum casting inspection fixture, this system is designed to replace traditional manual checking fixtures that are often time-consuming and operator-dependent. The digital system enables rapid inspection cycles with a measurement time of less than 30 seconds per part, greatly improving production efficiency and reducing quality inspection bottlenecks.

This makes it an ideal solution for manufacturers seeking a fast and reliable digital gauge fixture system for mass production environments.

Real-Time Data Display and Quality Control Integration

The system is equipped with a real-time display screen that clearly shows measurement deviations during inspection. Results are displayed using an intuitive color-coded system:

• GREEN – Pass
•  YELLOW – Warning / Near tolerance limit
• RED – Out of tolerance

This visual management method enhances operator efficiency and reduces inspection errors in daily production.

In addition, the electronic inspection fixture system supports data output and can be connected to a central processing unit (CPU). It can also be integrated with the customer’s Quality Management System (QMS), enabling real-time data sharing with the quality department for full traceability and smart manufacturing implementation.

Flexible Design with Heavy-Load Handling Capability

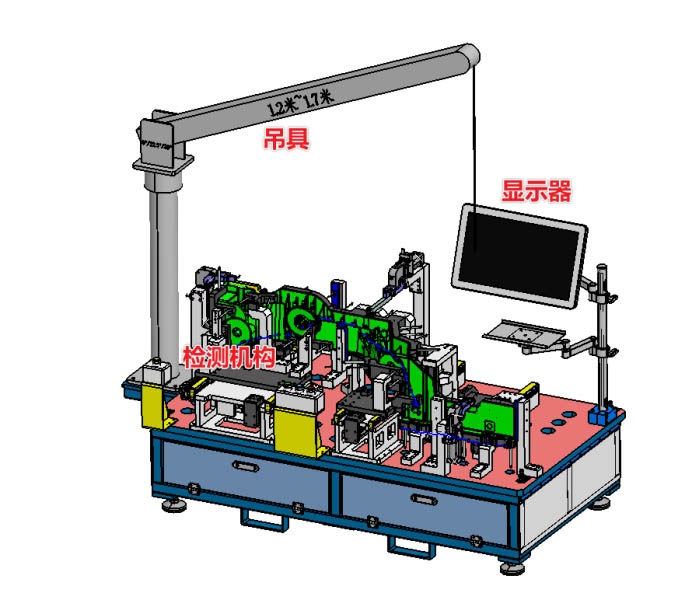

To support large and heavy components, the system is equipped with a customized 1.2–1.7 meter lifting arm, allowing operators to easily handle heavy workpieces during inspection.

This ergonomic design improves safety and usability, making the checking fixture system suitable for large aluminum die-cast parts commonly used in automotive engine components, structural parts, and industrial assemblies.

Key Advantages of Digital Electronic Checking Fixture

• High precision measurement up to 0.01mm
• GR&R repeatability ≤10% ensures stable quality control
• Fast inspection cycle (<30 seconds per part)
• Real-time digital display with color-coded results
• Supports vision system integration (optional)
• Data connectivity with central quality systems
• Ergonomic lifting arm for heavy-duty parts
• Replaces traditional manual checking fixtures

Application Industry

This digital inspection fixture system is widely used in:

• Automotive aluminum die casting inspection
• CNC machined part quality checking
• Aerospace component measurement
• Industrial precision manufacturing
• Mass production quality control systems

Conclusion

The digital electronic checking fixture for aluminum high pressure cast parts represents a major upgrade from traditional manual inspection tools. By combining high-precision sensors, fast measurement speed, real-time data visualization, and system integration capabilities, it delivers a complete smart solution for modern quality control.

It is an ideal choice for companies looking to upgrade from conventional checking fixtures to intelligent digital inspection fixture systems, improving both efficiency and product quality.
