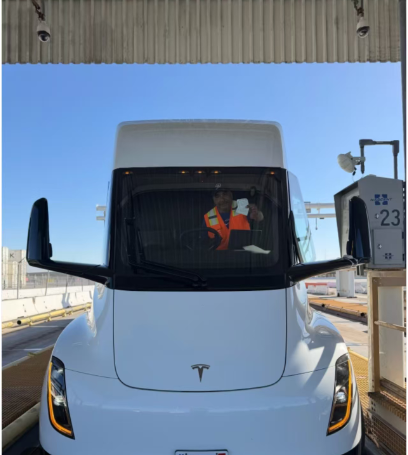

Tesla Semi Truck Front Bumper Robotic Welding Workstation Project

Advanced Robotic Welding Workstation for Electric Commercial Vehicle Manufacturing

Project Overview

With the rapid development of electric commercial vehicles, Tesla Semi requires high-strength, lightweight, and precisely assembled body components to ensure vehicle safety, durability, and production efficiency.

TTM Group was involved in the development and manufacturing of a Tesla Semi Truck Front Bumper Welding Workstation, providing a complete welding automation solution including fixture design, robotic welding integration, and production line optimization.

The project focused on achieving high welding accuracy, stable production quality, and efficient assembly for large structural bumper components used in Tesla’s electric truck platform.

Project Challenge

The front bumper assembly of an electric truck is a critical structural component that requires excellent dimensional accuracy and mechanical strength.

Compared with passenger vehicle components, commercial vehicle bumper systems are larger in size, heavier in weight, and require higher rigidity during assembly.

The main challenges included:

• Large-size component positioning and clamping
• Maintaining strict welding tolerances during production
• Ensuring repeatability for high-volume manufacturing
• Integrating robotic welding processes into an automated production environment
• Reducing manual operation and improving production efficiency

To meet these requirements, TTM developed a customized welding workstation with precision locating systems and automated welding technology.

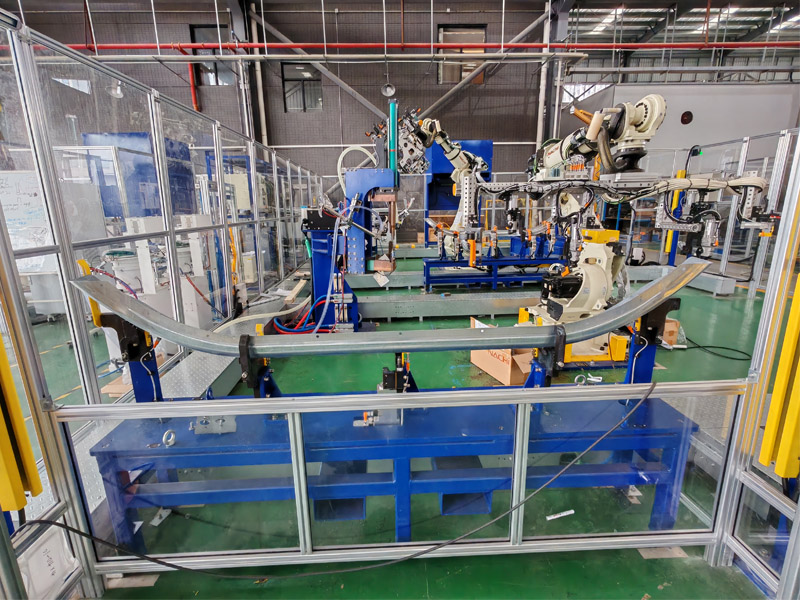

Robotic Welding Workstation Solution

TTM provided a complete turnkey welding workstation solution, including:

1. Customized Welding Fixture Design

The welding fixture was designed according to the Tesla Semi front bumper structure and manufacturing requirements.

Key features include:

• High-precision locating pins and clamping mechanisms
• Stable component positioning during welding
• Quick loading and unloading design
• Improved operator accessibility
• Optimized fixture rigidity to minimize welding deformation

2. Robotic Welding Integration

The workstation integrates industrial robots for automated welding operations.

The robotic welding system provides:

• Consistent weld quality
• Accurate welding paths
• Improved production efficiency
• Reduced human operation dependency
• Stable performance for continuous production

3. Production Line Optimization

TTM engineers worked closely with the customer’s manufacturing requirements to optimize:

• Welding sequence
• Fixture structure
• Robot movement paths
• Cycle time
• Safety protection system

The final solution achieved a balance between production efficiency, welding quality, and manufacturing reliability.

Project Highlights

Project: Tesla Semi Truck Front Bumper Welding Workstation

Application: Electric Commercial Vehicle Body Structure

Solution: Robotic Welding Fixture & Automation System

Main Technologies:

• Automotive welding fixture design
• Robotic welding automation
• Precision positioning system
• Manufacturing process optimization
• Turnkey production solution

TTM Group Automotive Manufacturing Capability

With extensive experience in automotive tooling and automation projects, TTM Group provides integrated manufacturing solutions covering:

• Automotive Stamping Dies
• Welding Fixtures
• Checking Fixtures
• Robotic Welding Automation Lines
• Body-in-White Manufacturing Solutions

From product engineering and fixture design to fabrication, assembly, and commissioning, TTM supports global automotive customers with reliable manufacturing solutions.

Conclusion

The Tesla Semi Truck Front Bumper Welding Workstation project demonstrates TTM Group’s capability in delivering advanced automotive automation solutions for next-generation electric vehicles.

Through precision fixture design, robotic welding integration, and manufacturing expertise, TTM helps customers achieve higher production efficiency, consistent quality, and reliable vehicle assembly performance.
