As the electric vehicle (EV) industry continues to grow, battery packs have become one of the most critical components affecting vehicle performance, safety, and reliability. Manufacturing these large and complex assemblies requires extremely tight dimensional control. Even small deviations can lead to assembly issues, sealing failures, or reduced battery performance.

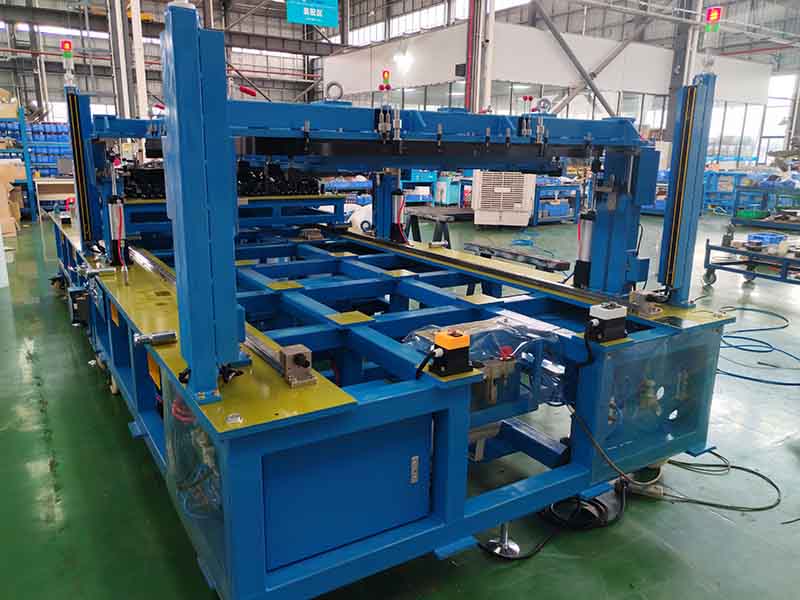

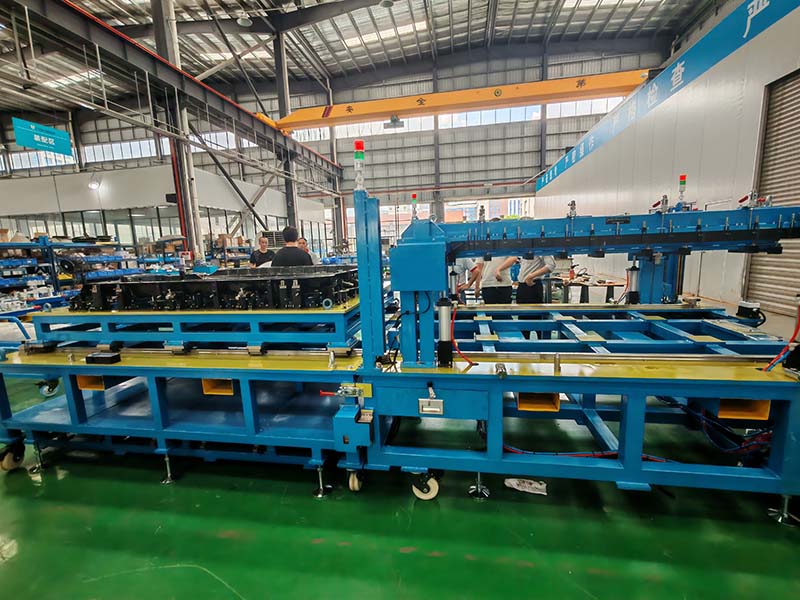

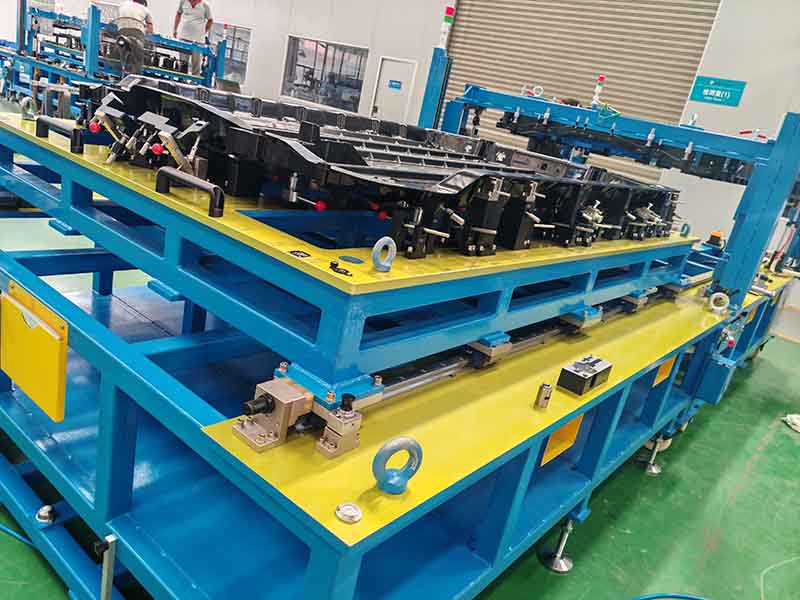

A new energy battery pack checking fixture is specifically designed to inspect the dimensional accuracy of battery pack components and assembled battery packs throughout the production process. It provides manufacturers with a reliable and repeatable inspection solution to ensure every battery pack meets engineering specifications before moving to the next manufacturing stage.

What Is a New Energy Battery Pack Checking Fixture?

A battery pack checking fixture is a customized inspection tool used to verify the dimensions, hole positions, mounting interfaces, flatness, and geometric tolerances of EV battery pack components.

Unlike manual measurements using rulers or calipers, a dedicated checking fixture allows operators to quickly position the part and determine whether it falls within acceptable tolerances. This significantly improves inspection efficiency while reducing human error.

Battery pack checking fixtures are widely used for:

• Battery tray inspection
• Battery housing inspection
• Upper cover inspection
• Cooling plate inspection
• Module frame inspection
• Final battery pack assembly verification

Why Battery Pack Inspection Is So Important

Battery packs consist of numerous precision components that must fit together perfectly. Poor dimensional accuracy can result in:

• Assembly interference
• Improper sealing performance
• Water or dust leakage
• Misaligned cooling systems
• Installation difficulties
• Reduced production efficiency
• Increased warranty costs

Using a dedicated battery pack inspection fixture helps manufacturers detect dimensional problems before assembly, minimizing costly rework and production delays.

Main Inspection Items

A customized battery pack checking fixture can inspect multiple critical features, including:

Overall Dimensions

Verify the overall length, width, and height of the battery pack.

Mounting Hole Positions

Ensure bolt holes, locating holes, and threaded inserts are accurately positioned.

Datum References

Confirm that all critical reference surfaces comply with engineering drawings.

Flatness

Measure the flatness of sealing surfaces to ensure proper gasket performance.

Profile Accuracy

Inspect complex contours and formed surfaces.

Gap and Flush Conditions

Check assembly gaps and flushness between mating components.

Position of Functional Features

Verify cooling interfaces, electrical connector locations, sensor brackets, and mounting points.

Key Features of a Battery Pack Checking Fixture

A professional battery pack checking fixture typically includes:

High Structural Rigidity

Large battery packs require a rigid fixture base to prevent deformation during inspection.

Precision Locating System

Accurate locating pins and reference blocks ensure repeatable positioning.

Modular Design

Interchangeable inspection modules allow different battery models to be inspected using the same fixture platform.

Quick Clamping

Pneumatic or manual clamping systems reduce loading time and improve productivity.

Digital Measurement Integration

Electronic probes, dial indicators, laser sensors, or digital gauges can be integrated for higher measurement accuracy and automatic data collection.

Ergonomic Operation

Fixtures are designed for easy loading, unloading, and operator safety.

Industries That Use Battery Pack Checking Fixtures

Battery pack inspection fixtures are commonly used in:

• Electric vehicle manufacturing
• Battery pack assembly plants
• Battery enclosure manufacturers
• Automotive Tier 1 suppliers
• Aluminum battery tray manufacturers
• New energy equipment manufacturers

Benefits of Using a Battery Pack Checking Fixture

Implementing a customized inspection fixture offers several advantages:

• Improve dimensional inspection accuracy
• Reduce manual measurement errors
• Shorten inspection cycle time
• Increase production efficiency
• Ensure consistent product quality
• Lower manufacturing costs
• Reduce rework and scrap
• Support quality traceability
• Improve customer satisfaction

Custom Battery Pack Checking Fixture Solutions

Every EV battery platform has unique structural requirements. As a result, battery pack checking fixtures are typically custom-designed based on CAD models, GD&T requirements, and production processes.

A complete solution may include:

• Manual checking fixtures
• Digital electronic checking fixtures
• CMM holding fixtures
• Robotic inspection fixtures
• Inline inspection stations
• Automated measurement systems

The fixture design can be optimized according to production volume, inspection frequency, required accuracy, and automation level.

Why Choose TTM GROUP?

TTM GROUP specializes in the design and manufacturing of high-precision checking fixtures for the automotive and new energy industries. With extensive experience in EV battery projects, our engineering team develops customized inspection solutions that combine accuracy, durability, and ease of operation.

Our capabilities include:

• Battery pack checking fixtures
• Battery tray inspection fixtures
• Automotive checking fixtures
• Welding fixtures
• Stamping dies
• Automated inspection systems

From concept and design to machining, assembly, calibration, and final validation, TTM GROUP delivers complete turnkey solutions that help manufacturers improve quality and production efficiency.

If you are looking for a reliable partner for new energy battery pack checking fixtures, EV battery inspection fixtures, or other custom inspection solutions, contact TTM GROUP today for technical consultation and a competitive quotation.
