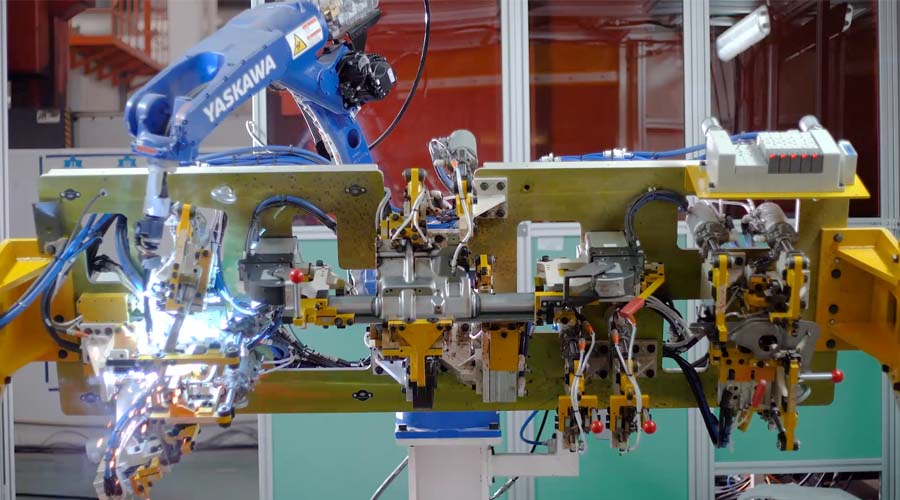

Robotic welding fixtures are specialized tools used in conjunction with robotic welding systems to accurately position and hold workpieces during the welding process. These fixtures are crucial in ensuring precise and consistent welds, especially in industries like automotive, aerospace, and manufacturing.

Here’s how robotic welding fixtures work:

1. Workpiece Positioning: The robotic welding fixture is designed to securely hold the workpiece in the correct position and orientation for welding. This is important to maintain the accuracy of welds and ensure that they meet the required specifications.
2. Alignment and Clamping: Fixtures often incorporate features such as clamps, pins, and adjustable components that can be customized to fit different workpiece shapes and sizes. This ensures that the workpiece is securely held in place and prevents movement during the welding process.
3. Accuracy and Consistency: Robotic welding fixtures are designed with a high degree of accuracy, allowing for precise positioning of the workpiece. This accuracy translates into consistent weld quality and reduces the likelihood of defects or rework.
4. Interfacing with Robots: Robotic welding fixtures are often designed with compatibility for robotic arms. This means they have mounting points or interfaces that allow the robotic arm to accurately position itself for welding.
5. Sensors and Feedback: Some advanced fixtures may include sensors or feedback mechanisms that provide information to the robotic system about the position and alignment of the workpiece. This real-time data can help the robotic system make adjustments to its welding path if necessary.
6. Customization: Fixtures can be customized for specific welding applications, accommodating various joint types, angles, and materials. This flexibility is important in industries where a wide range of products are manufactured.

Using robotic welding fixtures offers several benefits:

• Precision: Fixtures ensure consistent weld quality by holding workpieces in the correct position and orientation.
• Efficiency: Robotic welding fixtures reduce the need for manual adjustments and rework, leading to increased productivity.
• Safety: Fixtures improve safety by minimizing the need for human operators to be close to the welding process.
• Cost Savings: Consistent weld quality reduces the need for rework, saving time and resources.
• Scalability: Fixtures can be replicated for mass production, ensuring consistent results across multiple workpieces.

In summary, robotic welding fixtures are essential tools in industries that rely on robotic welding systems. They contribute to accurate, efficient, and high-quality welding processes, ultimately leading to better end products.
