The Digital Electronic Checking Fixture is an advanced precision inspection system for aluminum die casting parts, designed for high-accuracy dimensional measurement in manufacturing quality control.

It is widely used as a replacement for traditional mechanical checking fixtures, offering improved efficiency, digital measurement capability, and real-time data integration for modern smart factories.

This system is ideal for automotive manufacturing, aluminum die casting inspection, and precision machining quality control applications.

 What Is a Digital Electronic Checking Fixture?

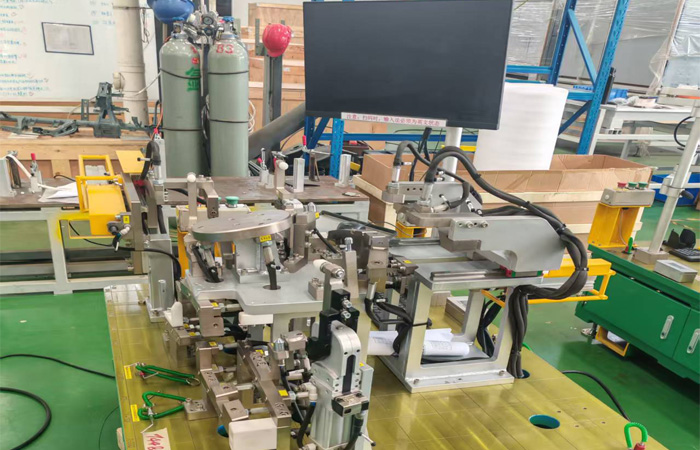

A digital electronic checking fixture is a modern industrial inspection tool that combines a high-precision measurement probe with a digital display system to perform fast and accurate part inspection.

Unlike traditional manual checking fixtures, this system provides:

• Faster inspection cycles
• Higher measurement accuracy
• Digital data output
• Real-time quality feedback

It is especially suitable for high-pressure aluminum die casting inspection before and after machining processes.

Key Features of Electronic Checking Fixture

High Precision Measurement System (0.01mm Accuracy)

This fixture is equipped with a high-precision detection probe (optional vision inspection system available), achieving:

• Measurement accuracy up to 0.01 mm
• Repeatability (GR&R) ≤ 10%

Ensuring stable and reliable inspection results in mass production environments.

Fast Inspection for Mass Production

Designed for high-volume manufacturing inspection, the system supports:

• Inspection time: < 30 seconds per part
• Rapid checking of standard components
• Reduced production bottlenecks

This significantly improves production line efficiency and quality control speed.

Real-Time Digital Measurement Display

The system features a built-in display for real-time measurement deviation monitoring, including:

• Green: OK (in tolerance)
• Yellow: Warning (near tolerance limit)
• Red: NG (out of tolerance)

This visual management system improves operator efficiency and reduces inspection errors.

Data Traceability & Quality Control Integration

The Digital Electronic Checking Fixture supports full quality data management and traceability, including:

• Measurement data printing
• Integration with central quality control systems
• Real-time data transmission to customer QC departments
• Support for Industry 4.0 smart manufacturing systems

This makes it an ideal solution for ISO/IATF quality management environments.

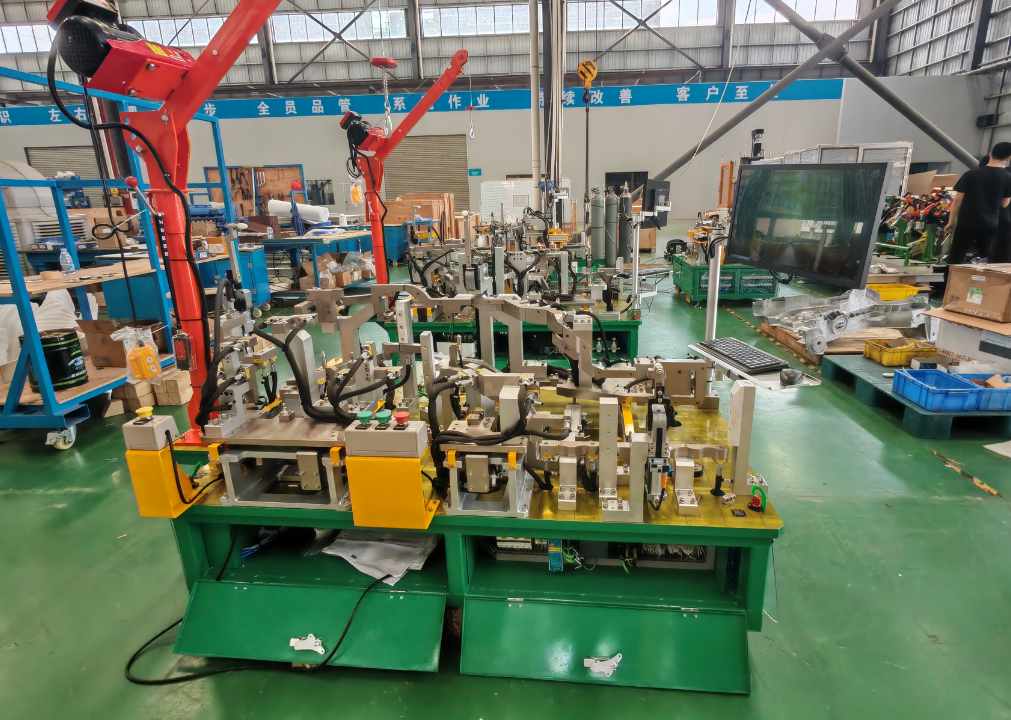

Ergonomic Design for Heavy Workpieces

To improve usability in industrial environments, the system can be equipped with a:

• Custom lifting arm (1.2–1.7m)
• Suitable for heavy aluminum die casting parts
• Improved operator safety and handling efficiency

Applications of Digital Checking Fixture

This high-precision electronic checking fixture is widely used in:

• Automotive manufacturing inspection
• Aluminum high-pressure die casting quality control
• Precision machining inspection
• Sheet metal and industrial component measurement
• OEM / ODM production quality assurance


  Technical Specifications

  Item	Specification
  Product Type	Digital Electronic Checking Fixture
  Application	Aluminum Die Casting Inspection
  Measurement Accuracy	Up to 0.01 mm
  Repeatability	GR&R ≤ 10%
  Inspection Time	< 30 seconds per part
  Display System	Real-time deviation + color judgment
  Data Output	Print / system / QC integration
  Optional Feature	Vision inspection system
  Lifting Arm	1.2–1.7 m customizable
