Fixtures are widely used throughout electric vehicle (EV) production. They are essential tooling devices that ensure product quality, improve production efficiency, and support automated manufacturing. Their primary functions are positioning, clamping, supporting, and inspecting components.

Main Applications of Fixtures in EV Manufacturing

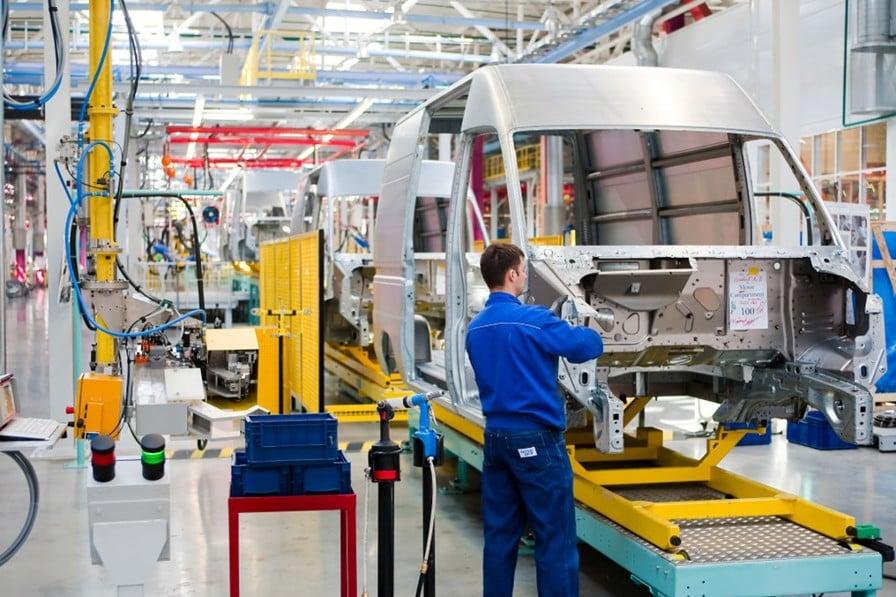

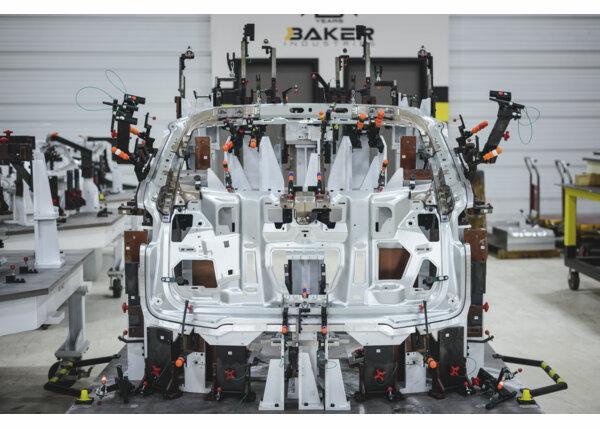

1. Body Welding Fixtures Body welding fixtures are among the most commonly used fixtures in EV manufacturing. Applications: Side body panels

Floor assemblies

Front compartment assemblies

Rear floor assemblies

Door assemblies Functions:

Precisely position sheet metal parts

Ensure welding dimensional accuracy

Minimize welding deformation

Support robotic welding operations Features:

Positioning accuracy up to ±0.1 mm

Pneumatic clamping systems

Integration with industrial robots

2. Battery Pack Assembly Fixtures The battery pack is one of the most critical components of an electric vehicle.

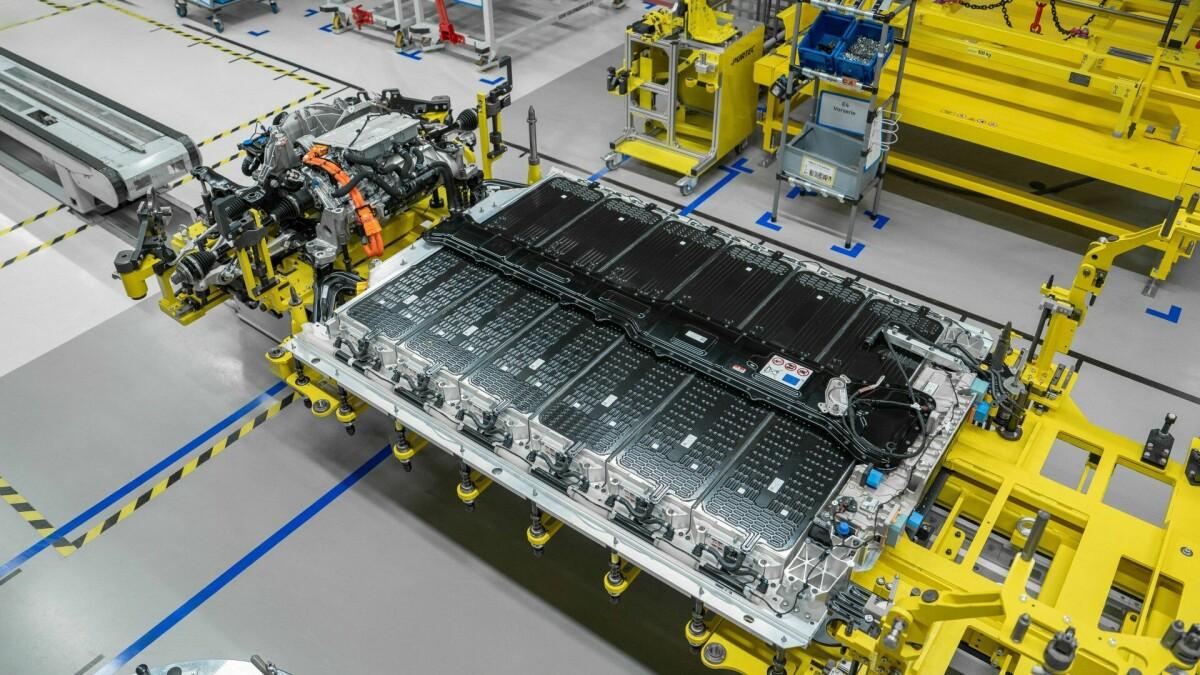

Applications: Cell assembly Battery module assembly Battery pack (PACK) assembly

Busbar welding Functions: Secure battery cells in position

Ensure accurate tab alignment

Assist laser welding processes

Position battery enclosure components

Requirements: High electrical insulation

Anti-static design

High-precision positioning

3. Motor Assembly Fixtures Used during electric drive motor manufacturing.

Applications: Stator press-fitting Rotor assembly Bearing installation Motor housing assembly

Functions: Ensure concentricity Control press-fit depth Improve assembly consistency

4. Chassis and Frame Assembly Fixtures Applications: Front and rear subframes Suspension systems Chassis assemblies Steering systems

Functions: Locate mounting holes accurately

Maintain geometric dimensions

Assist bolt tightening operations

5. Final Assembly Fixtures Used on vehicle final assembly lines.

Typical Applications:

Door installation fixtures

Instrument panel installation fixtures

Seat installation fixtures

Windshield installation

fixtures Benefits:Reduce labor intensity    Improve assembly efficiency    Minimize rework rates

6. Inspection Fixtures (Checking Fixtures) Used for quality control and dimensional verification.

Inspection Targets: Body dimensions Battery pack dimensions Weld positions Assembly gaps and flushness

Common Types: GO/NO-GO gauges CMM (Coordinate Measuring Machine) fixtures In-line inspection tooling Common Fixture Technologies in the EV Industry Pneumatic Fixtures

Fast response time Cost-effective Widely used in welding lines Hydraulic Fixtures High clamping force Suitable for heavy-duty components Electric Fixtures Intelligent control Clamping data monitoring and recording Ideal for smart EV factories Flexible Fixtures

Rapid model changeover Suitable for mixed-model production lines Increasingly popular in EV manufacturing Typical Applications in the EV Industry Leading EV manufacturers such as Tesla, BYD, NIO, and XPENG extensively utilize advanced fixture systems, including robotic welding fixtures, battery pack assembly fixtures, and flexible tooling solutions to enhance manufacturing efficiency and product quality. Business Opportunities for Fixture Manufacturers For companies involved in fixture manufacturing and export, high-demand products in the EV sector include: 1.Battery PACK assembly fixtures 2.Robotic welding fixtures 3.Inspection fixtures and gauges 4.Flexible positioning systems 5.Quick-change fixture systems 6.AGV-compatible clamping fixtures 7.Automated assembly fixtures Among these, battery pack fixtures, robotic welding fixtures, and flexible fixture systems represent some of the fastest-growing and highest-value segments in the global EV manufacturing industry.
