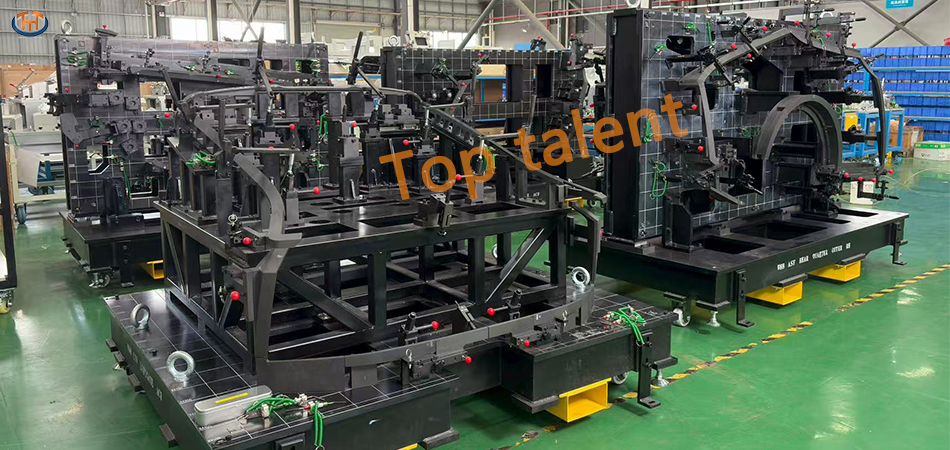

(Image suggestion: A high-resolution photo of a complex, multi-arm checking fixture holding a car door frame)

In the high-stakes world of automotive manufacturing, precision is non-negotiable. A fraction of a millimeter can be the difference between a seamless, quiet ride and a door that rattles, leaks, or fails to protect in a crash. While robots weld and humans assemble, there is a silent, unsung hero ensuring every component meets exact specifications: the door frame checking fixture.

This specialized tool is the ultimate arbiter of quality for one of a vehicle’s most complex and critical components. But what exactly is it, and why is it so indispensable?

What is a Door Frame Checking Fixture?
A checking fixture, or C/F, is a custom-built, rigid mechanical gauge designed to physically validate the geometry of a manufactured part. For a door frame—which includes the inner and outer panels, hinge and latch reinforcement areas, and the window frame—the fixture is a precise, inverse replica of the ideal “golden part” as defined by the vehicle’s CAD data.

Think of it as a high-precision, three-dimensional answer key. Manufacturers don’t just hope the part is correct; they prove it by placing the freshly stamped or assembled door frame into the fixture.

How Does it Work? The Quality Control Process
The process is methodical and thorough:

Placement: The operator positions the door frame onto the fixture, which is mounted on a stable base.

Locating: The part is secured using precisely machined locating pins and clamps that hold it in its exact nominal position, simulating how it will mate with the vehicle’s body.

Inspection: Using a series of sliding gauges, feeler pins, and dedicated gap/flush measurement blocks, quality control inspectors meticulously check critical dimensions:

Hole Locations: Are all holes for hinges, latches, wiring, and trim in the exact right place?

Profile and Contour: Does the entire shape of the frame match the digital design?

Flush and Gap: When a representative door skin is placed, does it align perfectly with the surrounding body panels?

Any deviation is immediately identified, measured, and documented. This data is crucial for correcting issues in the stamping dies or assembly process before thousands of defective parts are produced.

Key Components and Design Philosophy
A well-designed checking fixture is a masterpiece of engineering itself. It’s typically constructed from high-strength aluminum and steel for durability and stability. Key components include:

Base Frame: A massive, rigid structure that prevents any flex or distortion.

Locators (3-2-1 Principle): These pins and pads restrict all six degrees of freedom of the part, ensuring repeatable placement every time.

Check Blocks: Solid blocks that verify the part’s surface contours are within tolerance.

Functional Gauges: Simulate mating components like hinges or latches to test assembly feasibility.

Beyond Compliance: The Fixture’s Critical Role
The value of a door frame checking fixture extends far beyond simple quality control.

Safety: Correctly positioned hinge and latch points are fundamental to occupant safety. The fixture is a guardian of structural integrity.

Cost Savings: Catching defects early prevents catastrophic downstream costs, like production line stoppages or warranty claims for wind noise and water leaks.

Supplier Validation: Auto OEMs use master fixtures to certify that parts from external suppliers are perfect before they are approved for mass production.

In an era of advanced 3D scanning and CMMs (Coordinate Measuring Machines), the physical checking fixture remains irreplaceable for its speed, reliability, and ability to provide immediate, tangible feedback on the production floor. It is the physical bridge between digital design and real-world manufacturing excellence, ensuring that every door closes with that satisfying, solid thunk that customers expect.
