In the intricate skeleton of a modern vehicle, the cross-car beam plays a critical, often invisible role. Nestled beneath the dashboard, this hefty structural component forms a vital backbone, enhancing cabin rigidity, managing crash energy, and providing essential mounting points for steering columns, airbags, and instrument panels. Manufacturing this complex, safety-critical part efficiently and flawlessly is a monumental task – one where the automotive cross-car beam progressive die emerges as the indispensable, high-precision hero.

Beyond Simple Stamping: The Complexity of the Cross-Car Beam

Cross-car beams aren’t your average brackets. They typically feature:

Complex 3D Geometries: Curved profiles, deep draws, and intricate flanges are common.

High-Strength Steel (HSS/HSLA): Essential for lightweighting and crashworthiness, but notoriously difficult to form without springback or cracking.

Tight Tolerances: Precise dimensions and hole locations are non-negotiable for proper assembly and safety system function.

Multiple Features: A single beam often requires numerous holes, embossments, pierced slots, and specific edge conditions.

Trying to produce this part using single-hit dies would be prohibitively slow, costly, and inconsistent. This is where the sophisticated engineering of a progressive die becomes paramount.

The Progressive Die Advantage: Power, Precision, Productivity

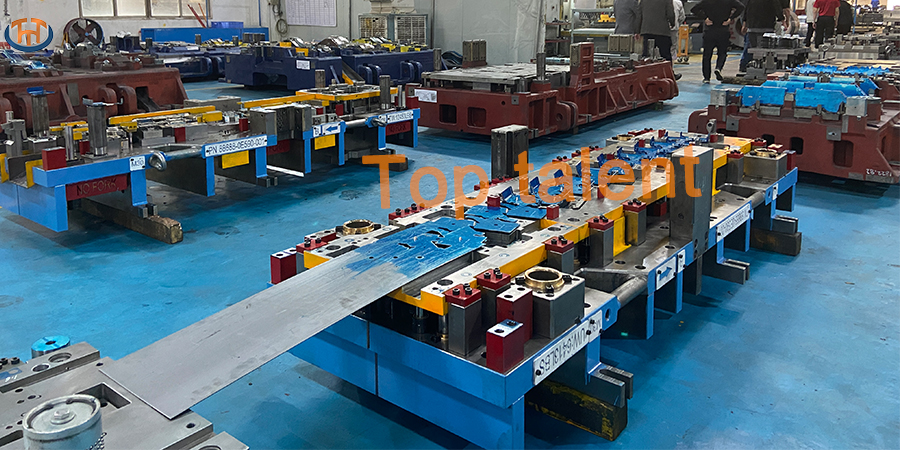

A progressive die for a cross-car beam is a marvel of tooling engineering. It consists of multiple stations arranged in sequence within a single die set. As a strip of high-strength steel feeds through the press:

Multiple Operations in One Stroke: Each press stroke simultaneously performs different operations at different stations (e.g., piercing, notching, bending, drawing, coining, trimming).

Continuous Flow: The strip progresses station-by-station, emerging at the end as a finished (or nearly finished) beam. This enables incredibly high production rates – essential for meeting automotive volume demands.

Unmatched Consistency: By performing operations progressively within a single, rigid die set, dimensional consistency and part quality are dramatically superior to multi-step processes. This is crucial for safety components.

Material Handling Efficiency: Handling a single strip is far more efficient and automatable than moving individual blanks between separate presses.

Cost-Per-Part Reduction: While the initial progressive die design and build investment is significant, the dramatic increase in throughput and reduction in labor/operational costs deliver the lowest possible cost per part over the lifetime of the program.

Designing the Beast: Challenges of Cross-Car Beam Progressive Dies

Creating a successful progressive die for these components is no small feat:

Material Mastery: Overcoming the forming challenges of HSS/HSLA requires expert simulation (FEA), precise die geometry, and often sophisticated springback compensation strategies built into the tool.

Massive Forces: Forming thick, strong steel requires immense press tonnage. The die must be robustly constructed with high-integrity components (guide systems, punches, die sections) to withstand punishing forces over millions of cycles.

Complex Strip Layout: Nesting the complex part shape efficiently into a strip while ensuring smooth material flow and minimal scrap is a complex puzzle.

Precision Engineering: Maintaining micron-level accuracy across numerous stations over the die’s lifespan demands exceptional machining, heat treatment, and assembly.

Automation Integration: Progressive dies are designed for seamless integration with automated feeding, transfer, and part handling systems.

The Bottom Line: Precision Tooling for Safety and Efficiency

The automotive cross-car beam progressive die is far more than just a tool; it’s a highly engineered production system. It represents the convergence of advanced metallurgy, precision mechanics, and sophisticated design software. Investing in a meticulously engineered and built progressive die is not merely a manufacturing choice; it’s a commitment to producing a critical safety component with the precision, consistency, volume, and cost-efficiency demanded by the modern automotive industry. When lives depend on the integrity of the cross-car beam, the progressive die is the unsung hero ensuring it performs flawlessly, time after time.
