In the high-stakes world of metal stamping, the bridge between die design and full production is critical. That bridge? The tryout process. And when it comes to validating complex, heavy-duty stamping tools – especially for large automotive panels, appliance components, or structural aerospace parts – one piece of equipment stands as an indispensable workhorse: the 1000-ton hydraulic press. This isn’t just brute force; it’s the precision instrument that ensures your million-dollar dies hit the production floor ready to perform.

Why Tryout is Non-Negotiable

Rushing a stamping die straight from the build shop to a high-speed production press is a recipe for costly disaster. Tryout is the dedicated phase where:

Form & Function are Proven: Does the die actually produce parts to print specifications? Are tolerances met?

Process Parameters are Fine-Tuned: Finding the optimal tonnage, press speed, and cushion pressure before mass production.

Flaws are Exposed & Fixed: Identifying and correcting issues like galling, wrinkling, tearing, springback, or misalignment in a controlled environment.

Tooling Life is Extended: Catching problems early prevents catastrophic damage during high-volume runs.

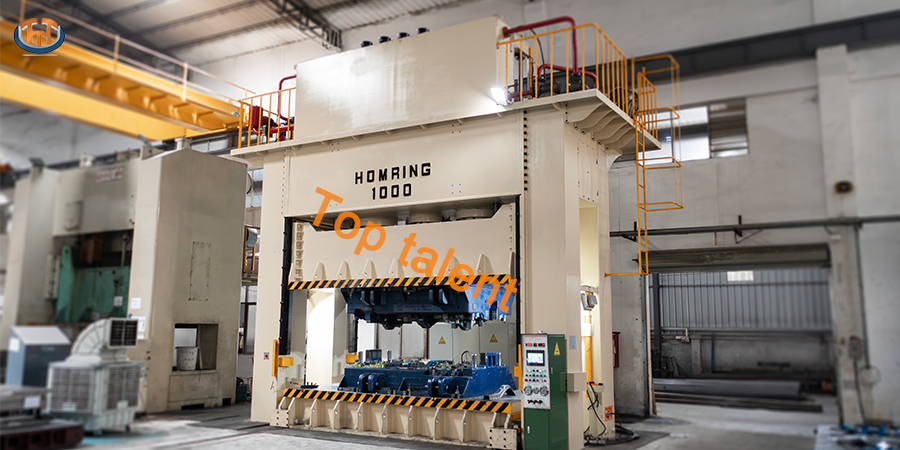

Enter the 1000-Ton Hydraulic Press: The Tryout Powerhouse

While mechanical presses dominate high-speed production, hydraulic presses reign supreme in the tryout arena, and the 1000-ton capacity hits a crucial sweet spot. Here’s why:

Unmatched Control & Flexibility: Hydraulic presses excel at providing precise, programmable control over ram speed and position throughout the entire stroke. This is paramount during tryout. Engineers can inch the ram down slowly for careful die spotting, apply tonnage gradually to monitor material flow, or hold pressure for extended periods to analyze springback – feats difficult or impossible on a mechanical press cycling at speed. The 1000T capacity provides the necessary force for large, complex parts without sacrificing this critical control.

Variable Tonnage at Your Fingertips: Unlike mechanical presses locked into a fixed tonnage curve, a 1000-ton hydraulic press allows operators to dial in the exact tonnage needed, from a few tons up to the full 1000 tons. This flexibility is vital for tryout. You can safely apply lower pressures to identify the minimum required force or simulate peak loads without risking overload damage to the delicate, newly-finished die. It allows for methodical experimentation.

Full-Stroke Power & Accessibility: Hydraulic presses deliver full rated tonnage throughout the stroke, not just near the bottom. Combined with generous daylight and large bed sizes typical of 1000T models, this provides exceptional accessibility. Tooling engineers can easily access the die space for measurements, adjustments, sensor placement, and troubleshooting without major press teardowns, significantly speeding up the tryout iteration process.

Built for Safety & Observation: Tryout involves constant interaction with the tool. Modern 1000T hydraulic tryout presses feature robust safety systems (light curtains, two-hand controls) and are often designed with excellent visibility into the die area. Slow, controlled movements enhance safety during adjustments and inspections.

Beyond the Basics: Optimizing for Tryout

Leading manufacturers equip their 1000-ton tryout presses with features specifically for this demanding role:

Programmable Logic Controllers (PLCs): Store and recall complex press cycles for consistent repeat testing.

Precision Die Cushions: Accurately simulate production press blankholder forces for forming validation.

Quick Die Change (QDC) Systems: Minimize downtime between different tool setups.

Advanced Data Acquisition: Monitor and record force, position, and pressure data for in-depth analysis.

The Bottom Line: Mitigating Risk, Maximizing Success

Investing time and resources in a properly equipped 1000-ton hydraulic press for your tryout operations isn’t an expense; it’s critical risk mitigation and quality assurance. It transforms the tryout phase from a necessary evil into a powerful engineering tool. By providing the precise control, flexible tonnage, and accessibility needed to thoroughly validate complex stamping tools under realistic conditions, the 1000T hydraulic press ensures your dies transition smoothly into production, hitting quality targets faster, minimizing costly rework, and protecting your valuable tooling investment. In the quest for flawless stamping production, the 1000-ton hydraulic tryout press is your indispensable first line of defense.
