In the high-stakes world of automotive manufacturing, precision isn’t just desirable – it’s non-negotiable. Every component, especially those critical to safety and aesthetics, must fit flawlessly. Enter the often-overlooked but absolutely vital A-pillar checking fixture. This specialized tool plays a pivotal role in ensuring the structural integrity, safety, and visual perfection of every vehicle that rolls off the line. For suppliers and OEMs focused on quality control, understanding this fixture is key.

What is the A-Pillar & Why Does it Matter?

The A-pillar is the robust vertical structure on either side of your windshield, connecting the roof to the vehicle’s body. It’s a cornerstone of structural safety, forming part of the passenger safety cell and supporting the roof during rollovers. Crucially, it also dictates the precise fitment of the windshield, doors, fenders, hinges, and trim panels. Even minor deviations in its shape, hole positions, or surface contours can lead to:

Windshield leaks or stress fractures

Door misalignment (poor fit, wind noise, closing issues)

Visible gaps with adjacent panels

Compromised structural integrity in a crash

Costly rework and assembly line delays

The Checking Fixture: Guardian of Precision

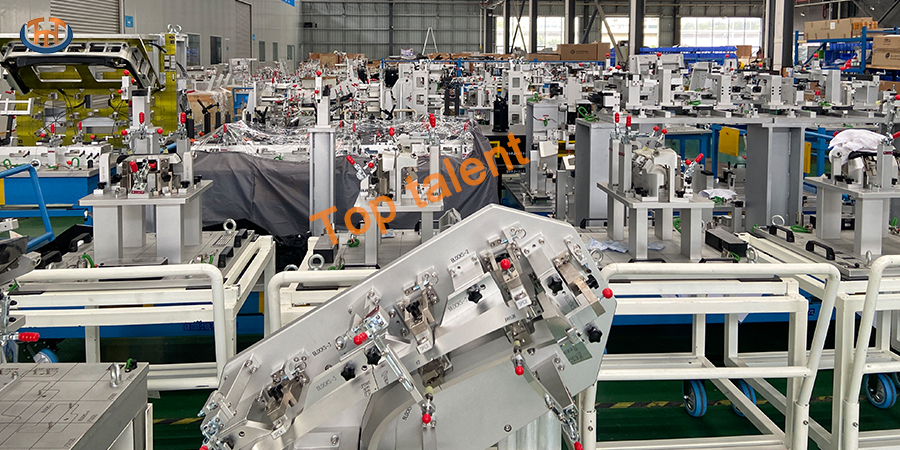

An A-pillar checking fixture is a bespoke, highly accurate physical replica of the designed A-pillar geometry (usually the Left-Hand or Right-Hand side, or sometimes a combined unit). Its core function is dimensional verification throughout the part’s lifecycle:

First Article Inspection (FAI): Validating the very first parts produced from new tooling.

Production Sampling: Regularly checking parts during mass production for drift or tool wear.

Supplier Qualification: Ensuring parts from external suppliers meet OEM specifications before shipment.

Troubleshooting: Diagnosing fitment issues on the assembly line.

How Does It Work?

Constructed typically from aluminum, steel, or advanced composites for stability and lightness, the fixture mimics the critical datums (reference points) and mating surfaces of the A-pillar within the vehicle body structure. Key elements include:

Datum Locators: Precisely position the A-pillar part exactly as it would sit on the car body.

Clamping Devices: Securely hold the part without distortion.

Functional Gauges: Check critical features like hole positions, slot dimensions, and edge profiles. These might be fixed pins, sliding blocks, or contour gauges.

Surface Check Plates: Verify the complex outer surface contours using feeler gauges or dedicated sensors.

Measurement Points: Strategic locations for manual (calipers, height gauges) or automated (CMM arms, laser scanners) measurement devices.

Beyond the Basics: The Value Proposition

Investing in high-quality A-pillar checking fixtures delivers significant returns:

Enhanced Safety: Guarantees the structural A-pillar meets rigorous crashworthiness standards.

Perfect Fit & Finish: Eliminates assembly headaches and ensures seamless panel gaps, crucial for brand perception.

Reduced Scrap & Rework: Catches dimensional errors early, saving significant costs.

Faster Time-to-Market: Streamlines part approval and production ramp-up.

Supplier Accountability: Provides unambiguous pass/fail criteria for incoming part quality.

GD&T Compliance: Physically validates the Geometric Dimensioning and Tolerancing specified on the part drawings.

The Bottom Line

While it may not be the most glamorous piece of equipment on the factory floor, the A-pillar checking fixture is an indispensable sentinel of automotive quality. It embodies the meticulous attention to detail required to build safe, reliable, and visually appealing vehicles. For manufacturers committed to excellence and lean production, robust checking fixtures for critical components like the A-pillar are not just tools – they are fundamental insurance policies against costly failures and essential partners in delivering perfection to the customer. In the symphony of automotive manufacturing, the checking fixture is the conductor ensuring every critical note of the A-pillar is played perfectly.
